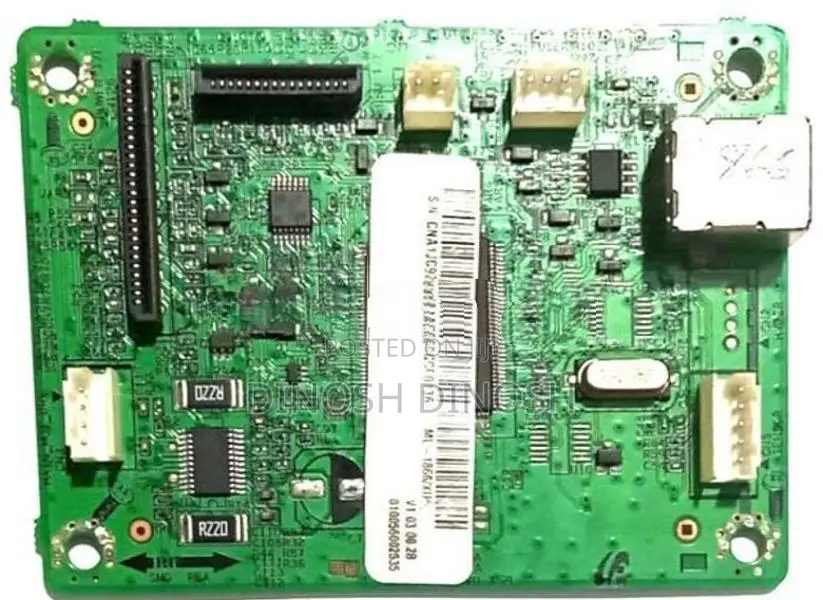

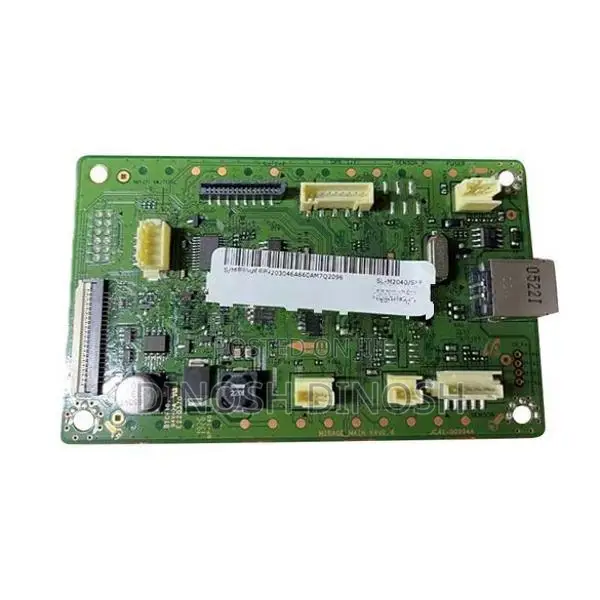

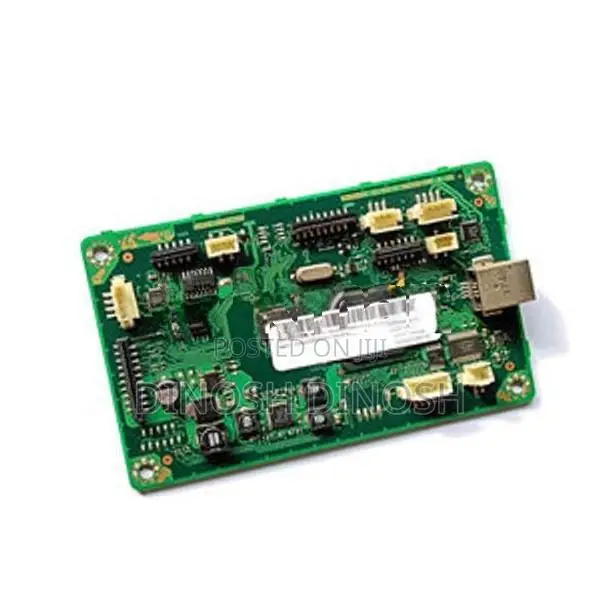

Formatter Board
Brand New
Condition
Step 1: Internal Printer Connections If you are reinstalling this board inside the printer housing, connect the dedicated ribbon cables and wire harnesses into their keyed sockets: Flat Flexible Cables (FFC / Ribbon Cables): Carefully slide the flat silver-tipped ribbon cables (from the scanner unit and print engine) directly into the corresponding wide horizontal slot connectors on the board. Secure the locking tabs down tightly. Wire Harness Connectors: Plugin the white plastic wire assemblies (from the control panel, power supply, and internal sensors) into the matching white keyed header pins distributed across the board. They only fit in one orientation. Step 2: External Computer Connection Once mounted and closed inside the printer body: USB Port Connection: Use a standard USB Type-B cable (the squarish printer connector) to pl ...
