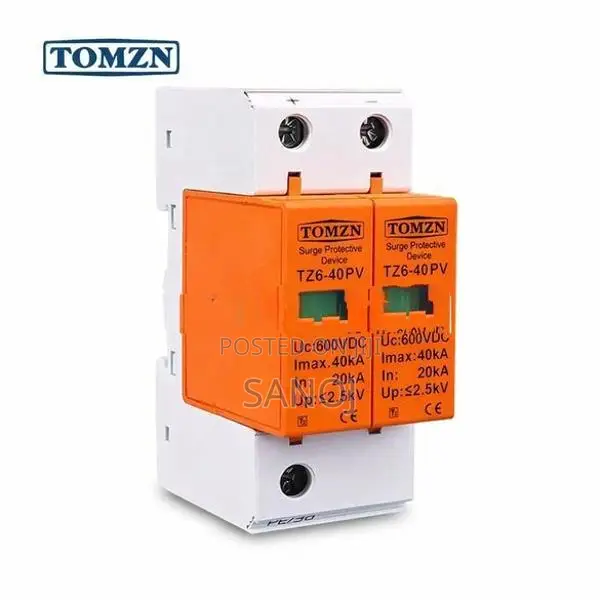

TOMZN 600V DC SPD Surge Protective Device Lightning for Solar
Brand New
Condition

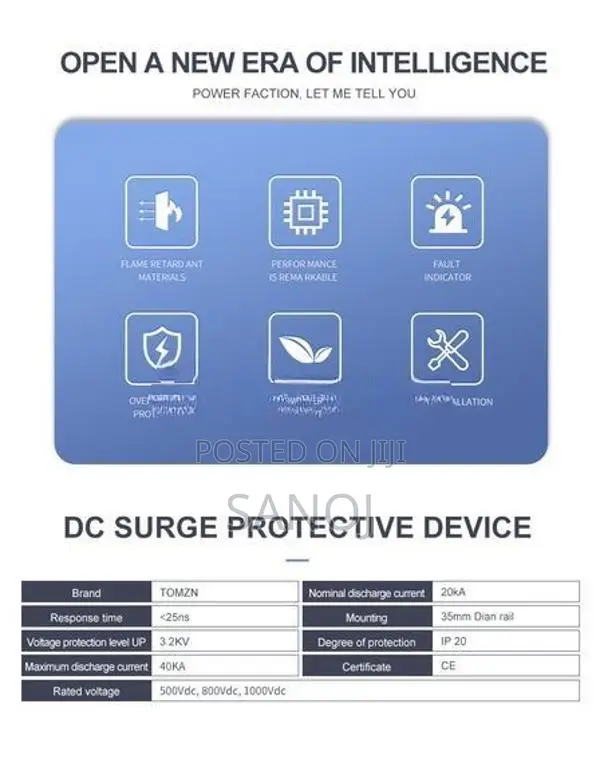

TOMZN 600V DC Surge Protection Device (Type 2) is engineered for photovoltaic DC systems to provide reliable protection against transient overvoltages caused by lightning or switching surges. ⚙️ Electrical Specifications: Rated Voltage (Uc): 600V DC Max Continuous Operating Voltage: 600V DC Nominal Discharge Current (In): 20kA (8/20µs) Max Discharge Current (Imax): 40kA (8/20µs) Voltage Protection Level (Up): ≤ 2.5kV Response Time: ≤ 25ns Number of Poles: 2P (Positive & Negative) Protection Mode: + / – to PE (Ground) 🏗️ Mechanical Specifications: Mounting: Standard 35mm DIN Rail Enclosure Material: Flame-retardant thermoplastic (UL94-V0) Protection Class: IP20 Operating Temperature: -40°C to +80°C Humidity Range: ≤ 95% RH Status Indicator: Green (Normal) / Red (Fault) Replaceable Module: Yes (Plug-in type) 📌 Standards: IEC 61643-31 ( ...
Rs 3,400
